Universal Triple 52mm Gauge Pod

Universal 3-Gauge Pod (52mm / 2-1/16") – Dash Mount

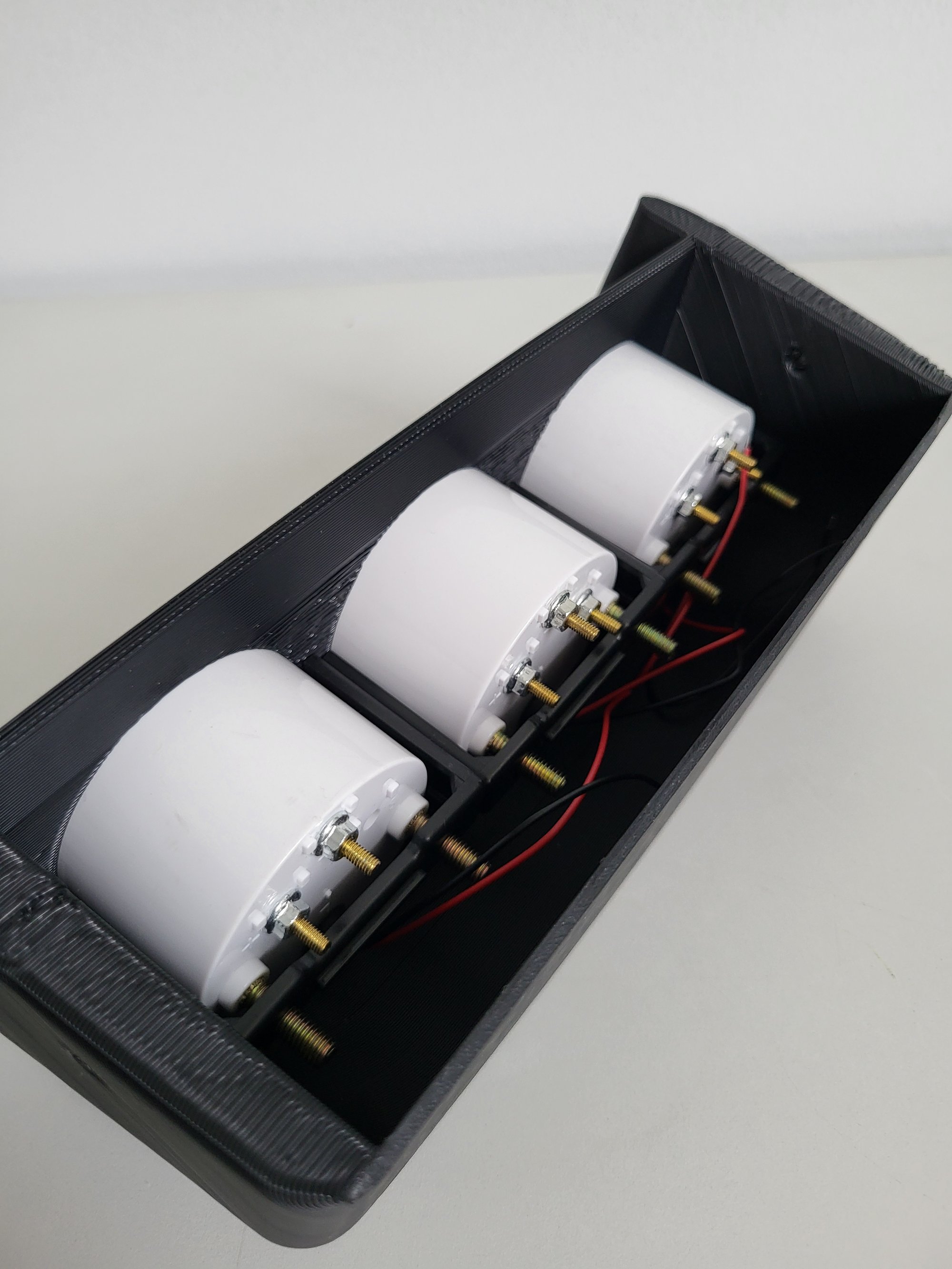

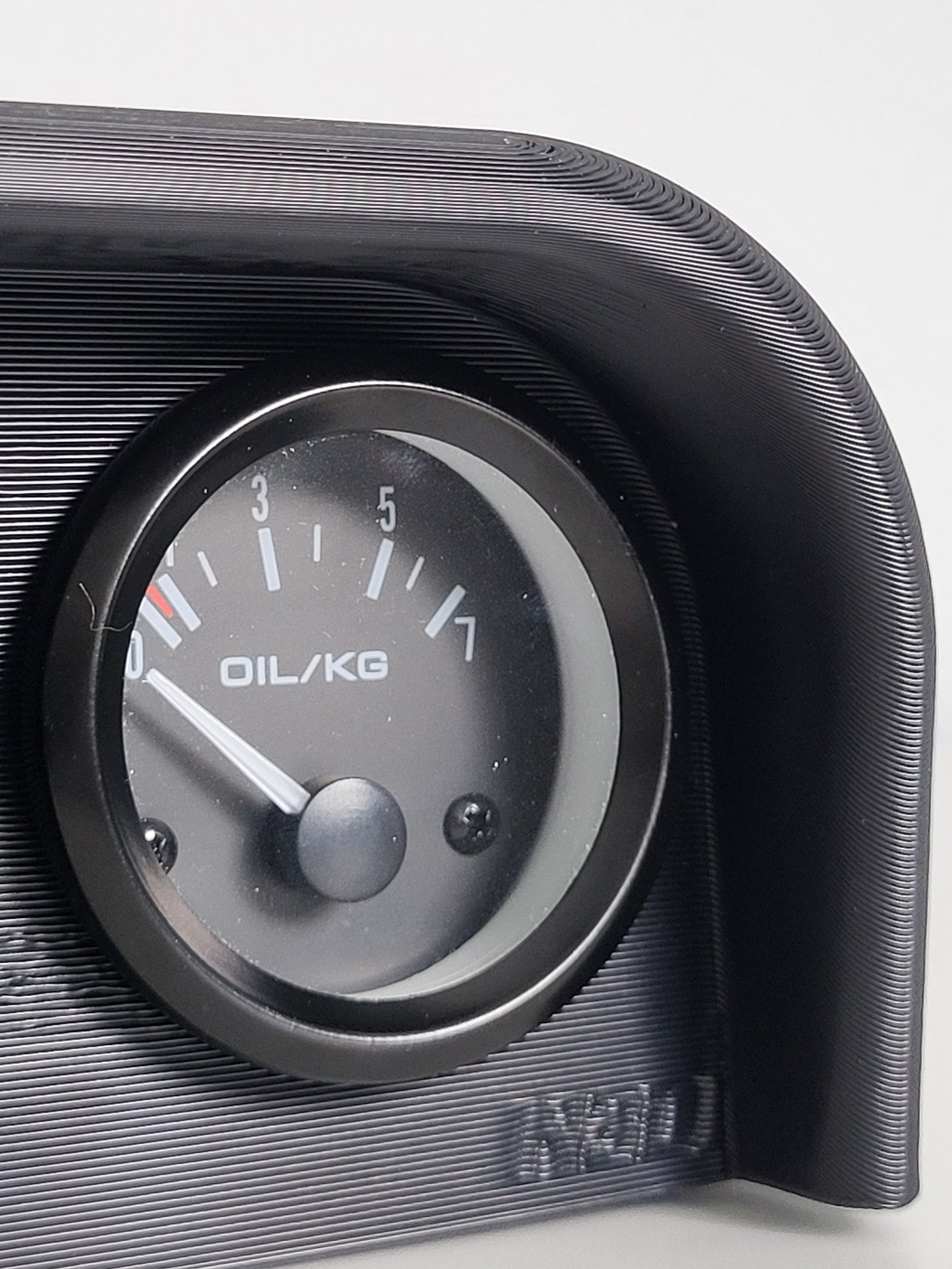

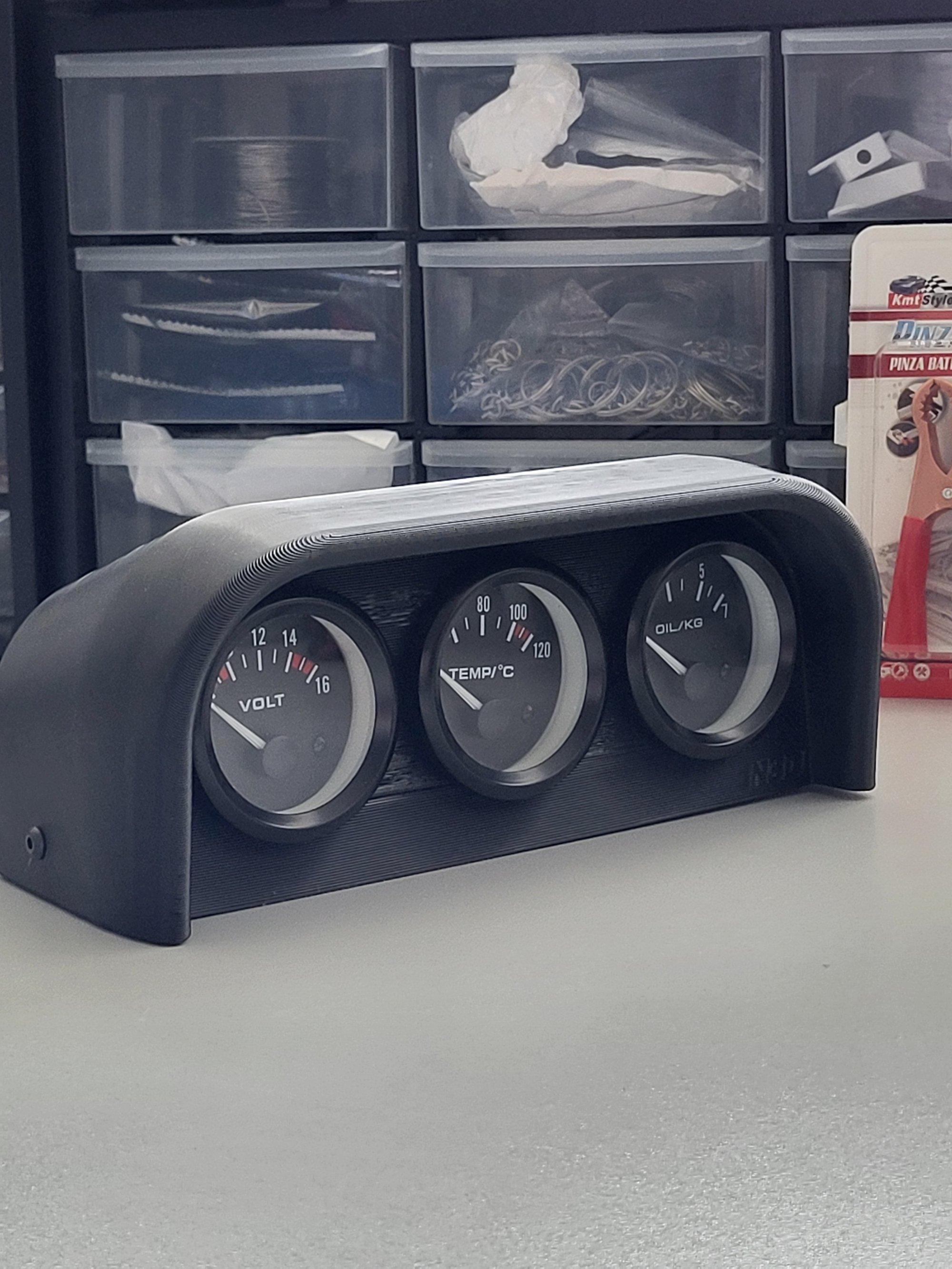

Sleek, compact triple gauge pod for boost, oil pressure, temp, AFR, battery voltage, etc. Fits 3x 52mm gauges - standard size for most aftermarket gauges.

2-piece construction:

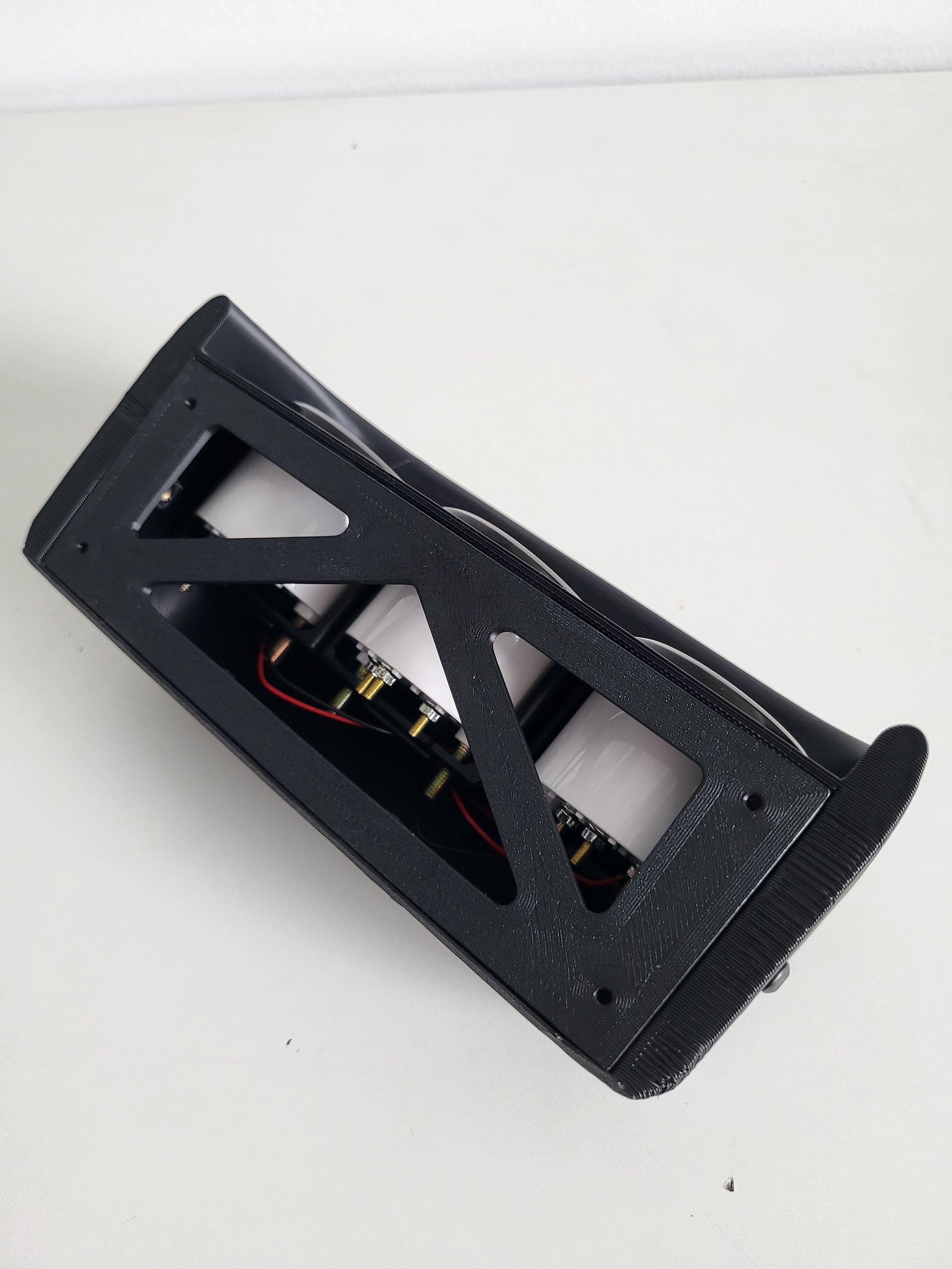

* Base plate - mounts via 6 screws direclty to dash;

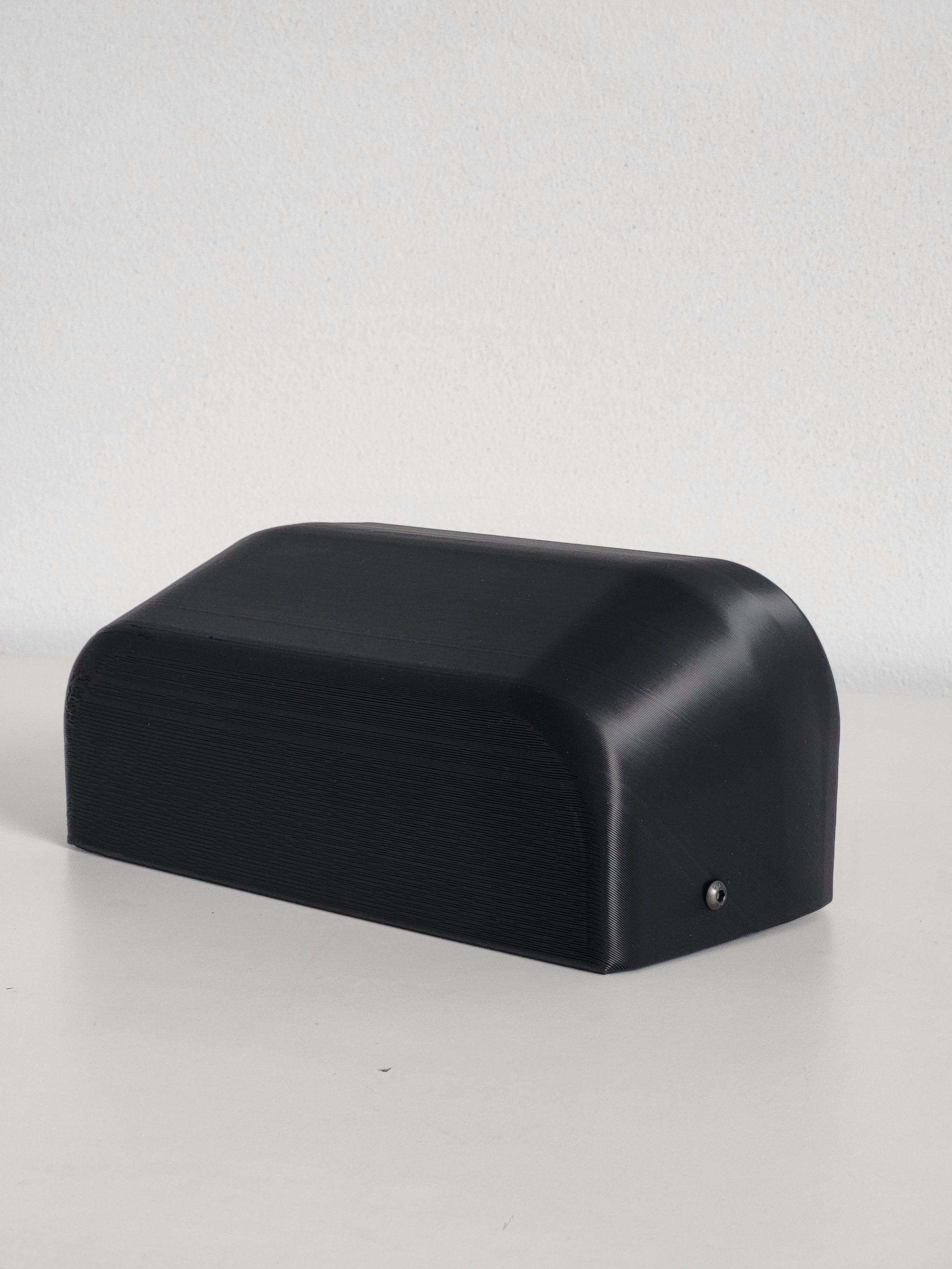

* Gauge cover - holds the gauges and bolts on the base plate with 2 side bolts screwed on threaded inserts;

Dimensions: 215,19mm long x 86,84mm wide x 86mm tall

3D printing settings

Printed in ASA or ABS - 4 to 6 walls, 10 to 15% infill.

Threaded inserts - 5,9mm wide, 8mm long, M4 female thread
Bolt - M4 16mm long

Print the cover diagonaly with supports
